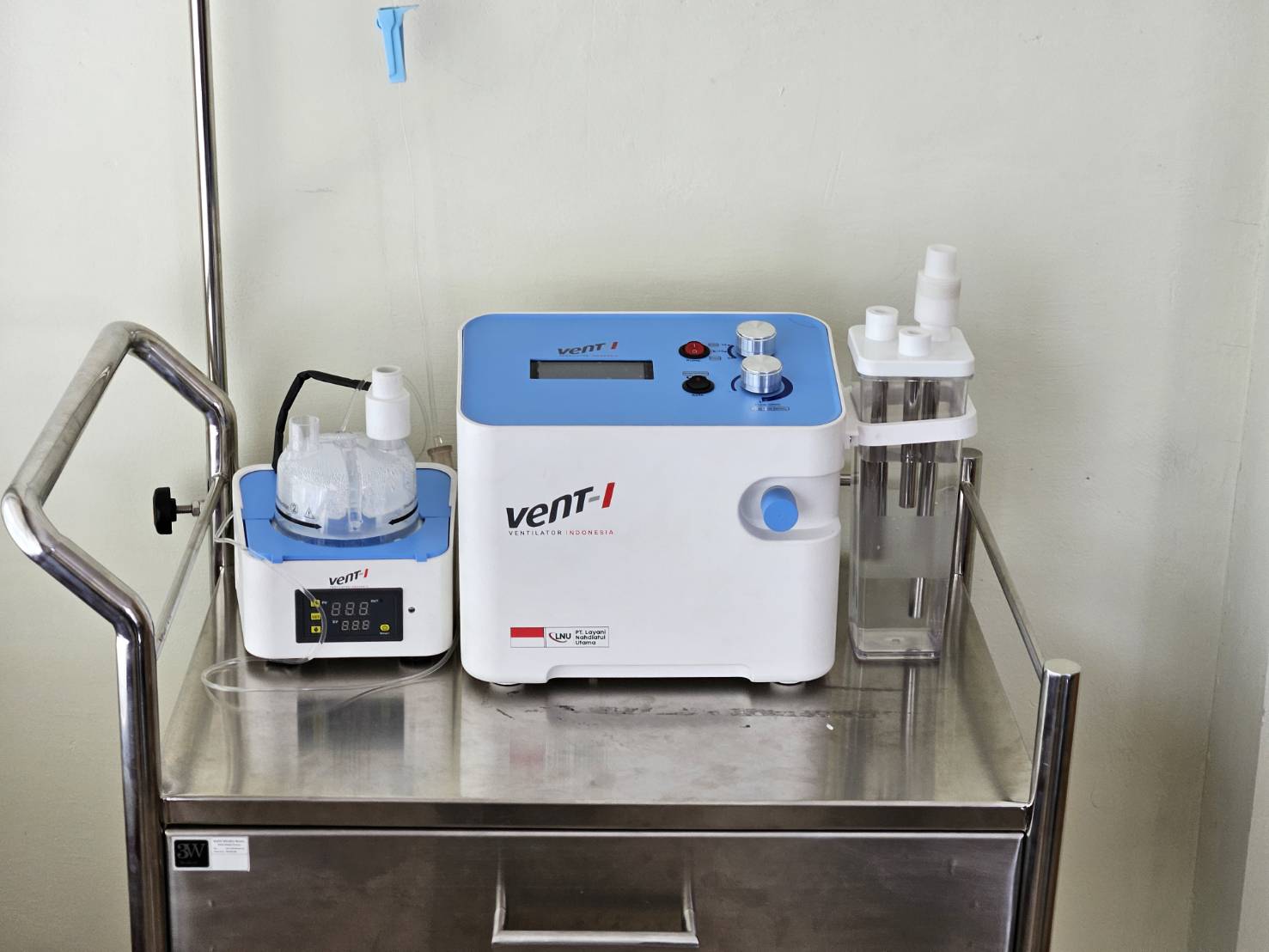

Vent-I Essential 3.5 Ventilator
- Ventilator type non invasive dual function CPAP (Continues Positive Airway Pressure) & HFNC (High Flow Nasal Cannula).
- As CPAP serves to provide a high flow oxygen supply and provide PEEP (positive end expiratory pressure) pressure to patients aimed at maintaining lung function.
- As HFNC functions to provide a high flow oxygen supply with an oxygen fraction (FI02) of 60% – 98%.
- The use of this tool is intended to assist the breathing of patients who experience shortness of breath but are still able to breathe independently.
Unit Specifications
- Product Name: Vent-I Essential 3.5 CPAP-HFNC Ventilator
- PEEP pressure setting range: 5 cmH2O, 10 cmH2O, or 15 cmH2O
- O2 gas input pressure: 2 – 4 bar (according to O2 gas regulator specifications)
- Oxygen content FiO2: 52% to 55% (CPAP mode) and 40% to 100% (HFNC mode)
- Mixed air flow rate CPAP function: 33 to 37 Liters per minute (auto mode) & max 60 liters per minute (manual mode) HFNC function: 30 – 60 liters per minute
- Noise level: < 70 dB
- PEEP mechanism: Hydrostatic Air
- Total pressure and flow rate control: Microcomputer Control System
- LCD Pressure Display: LCD with size 76 x 26 mm
- Blower Specifications: Centrifugal Fan 0-7 Kpa
- Air Filter: H13 HEPA Filter
- Power Consumption: Max 80 VA
- Current Consumption: Max 0.35 Ampere
- Pressure alarm (audio): Alarm sounds when the pressure is more than 20 cmH2O.
- Power Supply: AC 220-240 V; 50/60 Hz
- Power Source Voltage: AC (230+/-10%) V
- Power Source Frequency: 50/60 Hz
- Unit Dimensions (mm) (P x L x T): 181 x 273 x 234
- Net Weight: 3.2 kg
Heated Humidifier Specifications
- Product Name: VENT-I Heated Humidifier
- Temperature setting range:
- Room temperature 20 ° C, the temperature at the outlet of the Humidifier Chamber is approximately 8 ° C. hotter than the temperature in the Mask.
- Room temperature 25 ° C, the temperature at the outlet of the Humidifier Chamber is approximately 6 ° C hotter than the temperature in the Mask.
- Room temperature 30 ° C, the temperature at the outlet of the 5 ° C Chamber Humidifier is approximately 5 ° C hotter than the temperature in the Mask.
- compared to the temperature at the Mask.
- Installation Alarm: The alarm sounds and the LED lights up in red if the Chamber Humidifier installation and the temperature sensor at the outlet of the Chamber Humidifier are not installed correctly.
- Heated humidifier mechanism: Heating water with a separate Chamber Humidifier using a slab-shaped heater.
- Power Consumption: Max 330 VA
- Power Supply : AC 220-240 V; 50/60 Hz
- Unit Dimensions (mm) (P x L x T): 155 x 174 x 96
- Net Weight: 0.9 kg
NIE (Circulation Permit Number): KEMENKES RI AKD 20403120615
Distributor: PT.Gobel Dharma Nusantara
Manufacturer: PT PHC Indonesia
